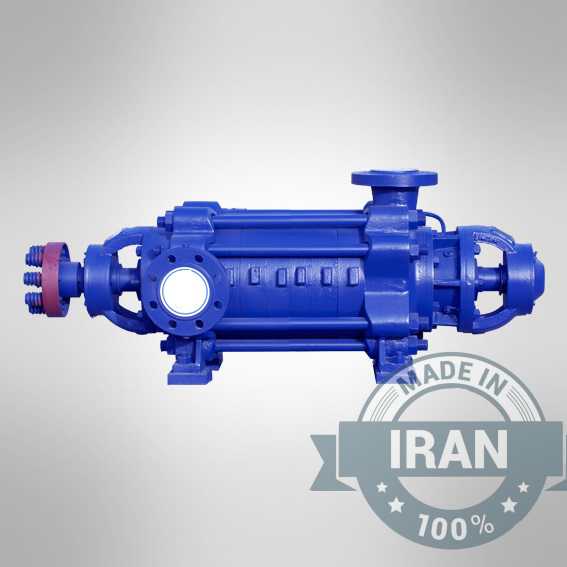

High-Pressure Multistage Horizontal Centrifugal Pump MD

50 – 700 Key Features:

• Multistage Design: Multiple impellers working in series provide high head and flow rates, making it suitable for applications requiring high pressure.
• Between-Bearing Impellers: Impellers are located between bearings, ensuring optimal balance and reducing vibration.
• Separate Motor: The motor is separate from the pump casing, allowing for easy installation and maintenance.
• Radial Split Casing: The casing can be split along a radial plane for easy access to internal components.
• O-ring or Paper Gasket Seals: Each stage is sealed with a reliable O-ring or paper gasket, preventing leakage.
• Balance Disc: A balance disc is used to counteract axial thrust, ensuring smooth operation.
• Cast Iron Construction: The pump is made from high-quality cast iron for durability and corrosion resistance.

Applications:

• Water supply for cities
• Industrial water pumping
• Irrigation systems
• Boiler feed pumps
• Condensate pumping
• Hot and cold water circulation in industrial plants
• Firefighting systems

Benefits:

• High efficiency
• Low maintenance
• Long service life
• Reliable operation
• Customizable to meet specific requirements

Choose our MD high-pressure multistage horizontal centrifugal pump for your next project and experience the difference.

FAQ

1. What are the main applications of the MD pump?

The MD pump is used for a wide range of applications, including water supply, industrial processes, and firefighting.

2. What is the maximum temperature that the pump can handle?

With a sealing ring, the maximum fluid temperature is 80°C.

3. What is the difference between a single-stage and multistage pump?

A multistage pump has multiple impellers, allowing it to generate higher heads compared to a single-stage pump.

4. How often does the pump need to be maintained?

Maintenance frequency depends on operating conditions. Regular inspections and lubrication are recommended.

5. What is the noise level of the pump?

Noise levels vary depending on the specific model and operating conditions.

6. Can the pump handle abrasive fluids?

The pump is generally suitable for clean water. For abrasive fluids, consult with our experts.

7. What is the warranty period for the pump?

Warranty periods may vary. Please check with the specific supplier for details.

8. How can I choose the right pump for my application?

Our experts can help you select the right pump based on your specific requirements, such as flow rate, head, and fluid properties.

9. What is the delivery time for a custom order?

Delivery times vary depending on the specific order and your location.

10. Can I request a quote for a customized pump?

Yes, please contact us with your specific requirements and we will provide you with a quote.

Outlet Diameter (mm)	50 – 150
Flow Rate (m³/h)	Up to 200
Head (m)	50 – 700
Fluid Temperature at Seal (with sealing ring) (°C)	Up to 80
Test Pressure (bar)	100
